Multiple Deck Sizer MDS

MDS Machine Concept

Proven screening principle further developed with a modular design

The Multiple Deck Sizer is based on a proven sizer principle that SIEBTECHNIK has further developed and combined with a modular machine concept. The focus is on adapting the machine to different separation tasks and providing maintenance-friendly components.

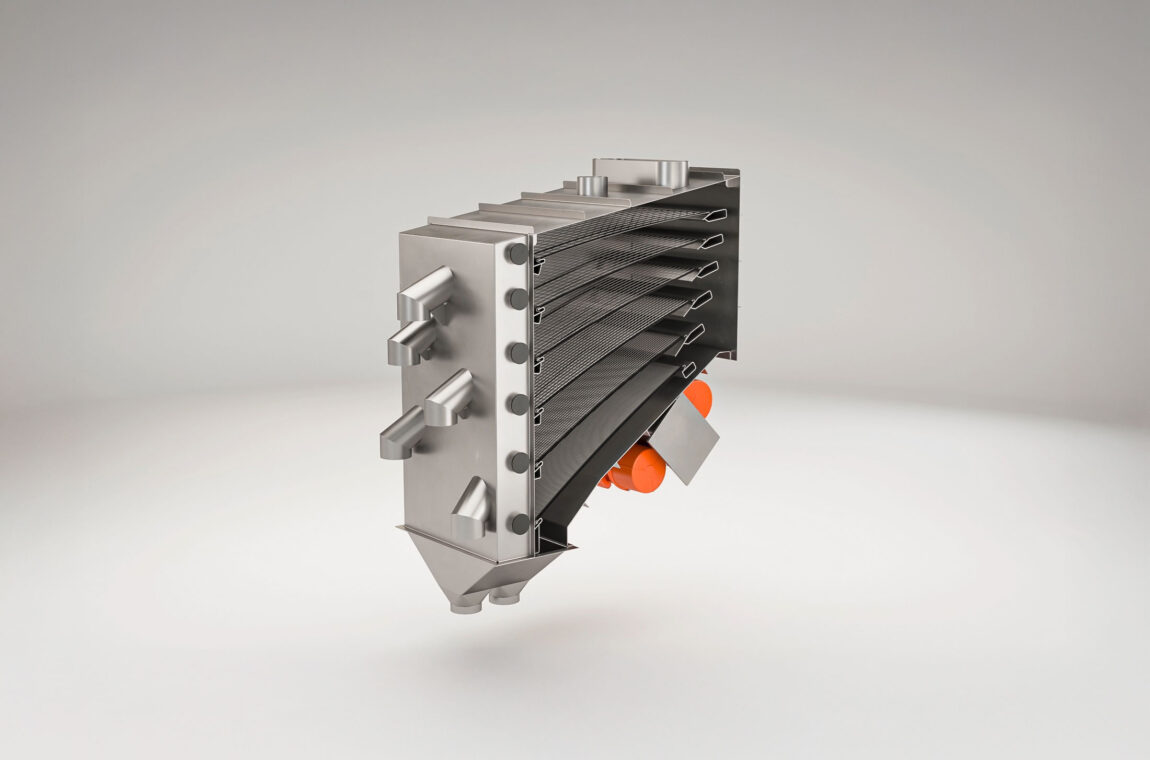

Multiple screen decks arranged one above the other at different inclinations provide a large screening area while requiring comparatively little space. This makes the MDS suitable for both new plants and applications with limited installation space.

The short residence time of the material results in a low material volume inside the machine. As a result, large-volume fines hoppers are not required. Feed and discharge connections can be sized to suit the material being processed.

The compact machine design can also reduce the engineering effort required to integrate the MDS into the plant.

Operating Characteristics and Screening Principle

The feed material enters the machine through a feed inlet and, where required, is evenly distributed across the screen width by a distribution chute. The linear-motion vibration transports and loosens the material on the inclined screen decks.As the material passes across the individual screen decks, it is progressively classified by particle size and discharged through the designated outlets.

Distributing the material across multiple screen decks keeps the material layer relatively thin. This thin-layer screening promotes contact between the particles and the screen surface and allows the material to move with minimal interference between individual particles. As the material passes over the upper decks, it is further loosened, allowing agglomerates to break apart at an early stage. This helps reduce adhering and entrained fines, resulting in less undersize material in the oversize discharge.

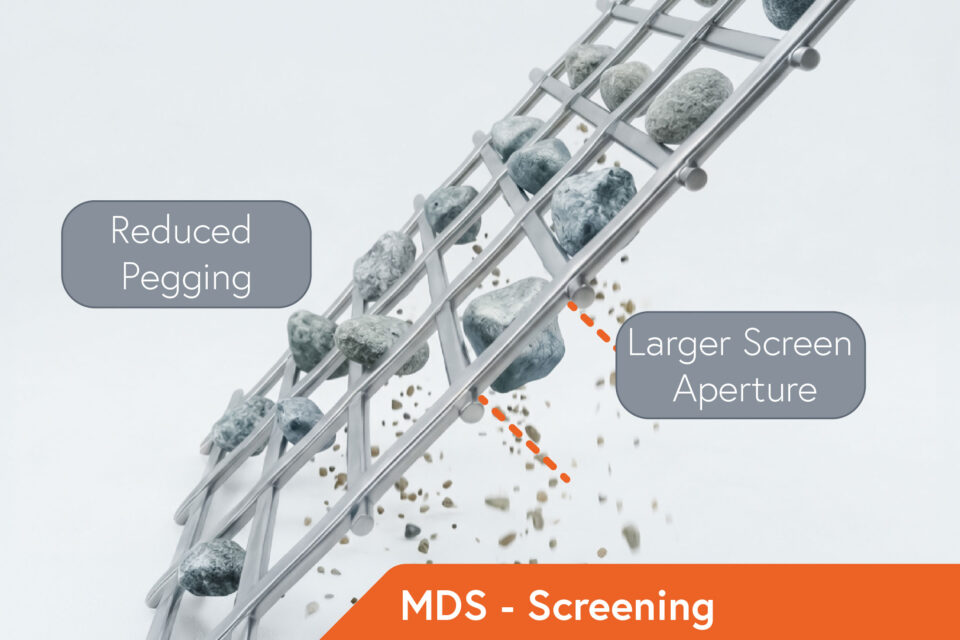

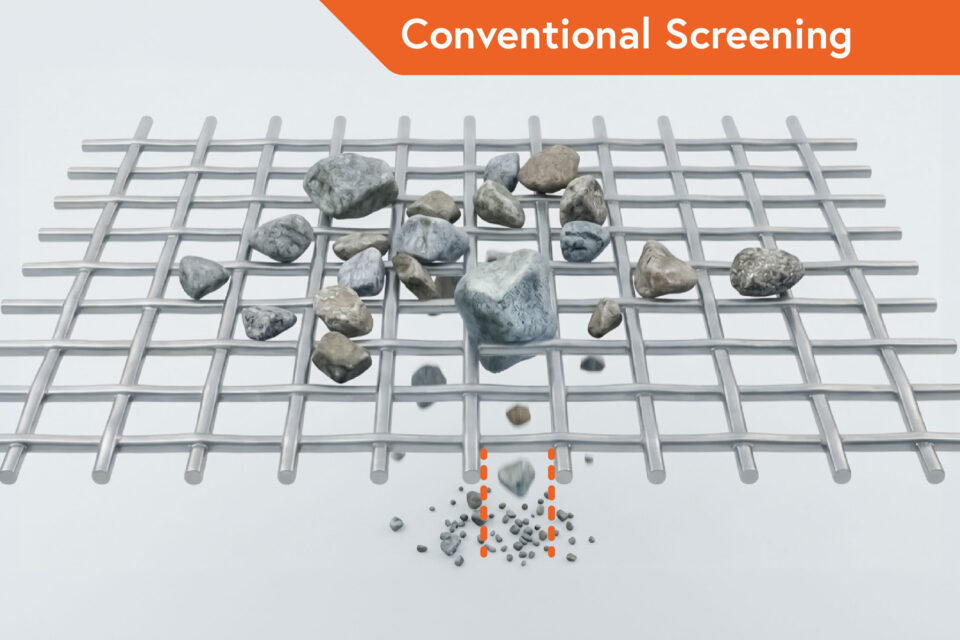

A key feature of the MDS principle is the use of larger screen apertures relative to the respective cut size. This provides a higher percentage of open screen area, which supports high throughput. At the same time, the tendency of near-size particles to become lodged in the screen openings is reduced.
The resulting freedom of particle movement enables a short residence time inside the screening machine. This helps protect both the material and the screen media while keeping the volume of material inside the machine low.

We tailor deck inclinations, mesh sizes, screen media, and vibration parameters to the product, throughput, particle size distribution, and required separation cuts. The achievable screening result depends, among other factors, on particle shape, moisture content, and uniform feeding.

Equipment Options

The MDS configuration is based on the specific separation task and the requirements for installation, operation, and product quality.
